Originally issued: October 08, 2025
Author
Shaun Williamson, P.L.(Eng.), CFSE
Director of Engineering
Abstract
Alberta’s new AB-381i Guideline for Overpressure Protection by System Design (OPPSD) finally brings clarity to what “equivalent safety” really means under AB-525.
The article explains when SIL 3 or SIL 2 performance is appropriate, how fluid and service conditions influence SIL targets, and why IEC 61511 lifecycle compliance and PEIMS integration are now essential parts of demonstrating equivalence.
AB-381i turns years of uncertainty into a clear, structured framework—helping engineers and owner-users confidently design and maintain OPPSD systems that truly meet Alberta’s regulatory expectations.
Beyond the PSV: Understanding ABSA AB-381i and the Role of SIL in OPPSD
The August 2025 release of AB-381i – Guideline for Demonstrating Equivalent Safety for Overpressure Protection by System Design (OPPSD) marks an important milestone in Alberta’s approach to engineered overpressure protection.
Developed by the Alberta Boilers Safety Association (ABSA), this document provides clear, practical guidance on how to demonstrate “equivalent safety” when overpressure protection is achieved through system design or instrumentation rather than a conventional Pressure Safety Valve (PSV).
Closing the Clarity Gap Between AB-525 and Industry Practice
For years, AB-525 – Overpressure Protection Requirements for Pressure Equipment has provided the regulatory foundation for overpressure protection in Alberta.
While AB-525 permits Overpressure Protection by System Design (OPPSD) under PESR Section 38(1)(b), it did not explicitly define what constituted equivalent safety to a PSV.
In practice, ABSA reviewers assessed equivalency as requiring Safety Integrity Level 3 (SIL 3) performance. It should be noted that this gave operating companies heartburn since typical credit applied for a clean service PSV in Layer of Protection Analysis (LOPA) is 0.01 PFDavg (less reliable than SIL 3 performance). The disconnect could be interpreted as ABSAs intent to take a conservative approach at ensuring the risk is adequately covered when a PSV is not a valid option.
Because this ABSA interpretation was not formally documented in AB-525, industry was left uncertain whether SIL 3 was mandatory, and if so, whether compliance required full IEC 61511 lifecycle implementation or merely a SIL 3-capable design.
The introduction of AB-381i has now resolved these questions. It bridges the gap between regulatory intent (AB-525) and engineering implementation, providing explicit guidance on SIL expectations and confirming the need for IEC 61511 lifecycle processes when demonstrating equivalence.
AB-381i Clarifies Expectations: SIL Targets and Lifecycle Implementation
Section 4.0 of AB-381i, “Selection and Use of SIL 3 and SIL 2,” confirms ABSA’s interpretation that:
SIL 3 represents the benchmark for equivalence to a PSV, particularly for clean, expansible fluid services such as steam, natural gas, or other clean hydrocarbons.
SIL 2 may be acceptable for lower-risk applications, provided a documented engineering justification and consultation with ABSA Design Survey are included.
For non-clean or fouling services, where PSV reliability may be reduced by plugging or polymerization, designers should consider mitigation measures such as purging, inert-gas injection, or heat tracing to maintain reliability.
Beyond defining SIL targets, AB-381i explicitly references IEC 61508 and IEC 61511, confirming that the full functional-safety lifecycle applies.
This includes requirements for SIS architecture diagrams, PFDavg calculations, SIL verification, proof-test procedures, validation plans, and lifecycle documentation maintained within the owner’s Pressure Equipment Integrity Management System (PEIMS).
This clarification ensures that equivalent safety is not achieved solely through design capability, but through ongoing lifecycle management and verification—ensuring system integrity is maintained throughout operation.
Interpreting Fluid and Service Characteristics

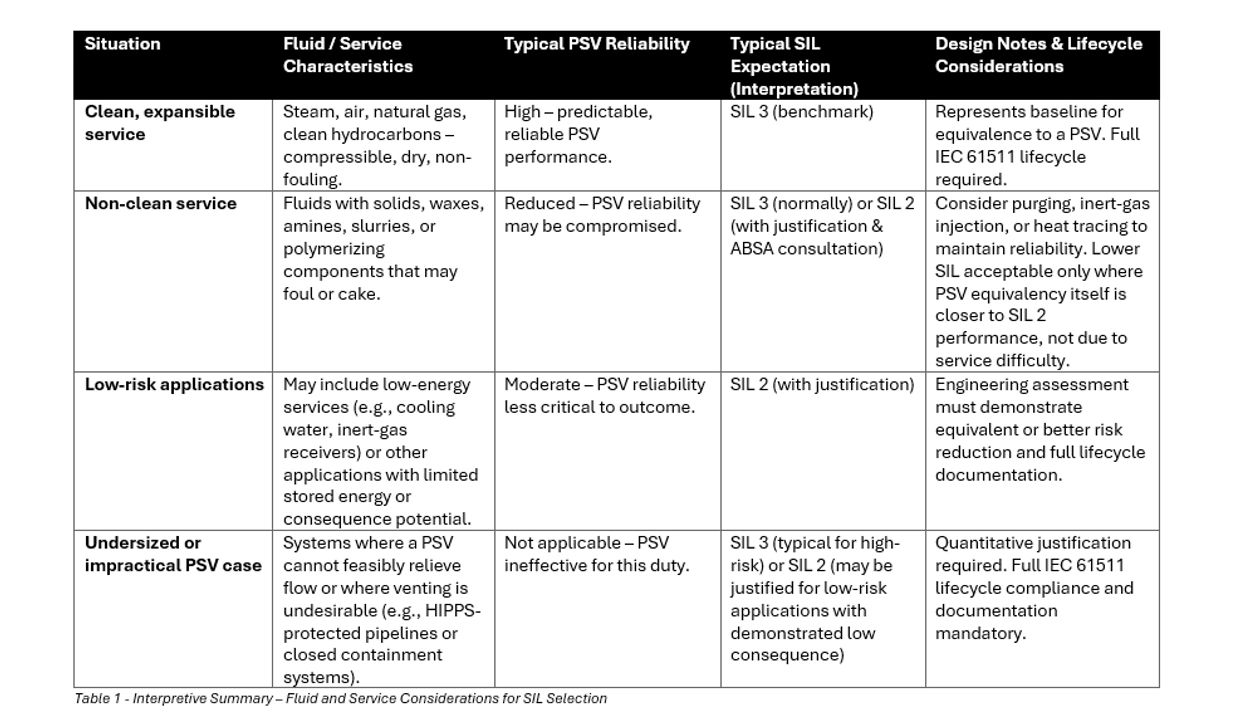

The following table provides guidance based on our professional interpretation of Section 4.0 of AB-381i and should be viewed as contextual commentary, not an official ABSA position.
It is intended to help practitioners align system design, SIL selection, and lifecycle management with the intent of the guideline.
Importantly, SIL 2 is not intended as a relaxed requirement for dirty or higher-risk services (for example, where a PSV is undersized or cannot perform adequately).
Rather, the allowance for SIL 2 reflects the recognition that, in many services, PSV reliability is degraded, and therefore a properly designed, verified, and lifecycle-managed OPPSD achieving SIL 2 may still be considered equivalent in safety to a PSV. AB-381i requires consultation with ABSA Design Survey when considering SIL 2 in these cases.
Note: This table represents a professional interpretation of AB-381i’s qualitative guidance. It should be used as contextual support only; official expectations remain those stated within the guideline itself.
The Importance of Lifecycle Integration
By referencing IEC 61511, AB-381i reinforces that demonstrating equivalent safety extends beyond achieving a design target—it requires maintaining performance throughout the entire safety lifecycle. This includes proof-testing, documentation, and Management of Change (MOC) activities administered through the owner’s PEIMS program.
This lifecycle-based approach aligns Alberta with international functional-safety practice and ensures that OPPSD solutions maintain reliability equivalent to PSV performance throughout their service life.
Key Takeaways
- AB-381i closes a longstanding clarity gap by defining how ABSA interprets “equivalent safety” under AB-525.
- SIL 3 is confirmed as ABSAs benchmark for equivalence to a PSV, while SIL 2 may be justified where PSV reliability aligns more closely with SIL 2 performance, subject to ABSA Design Survey consultation.
- The guideline explicitly references IEC 61511, confirming that lifecycle management, proof-testing, and documentation are required for OPPSD acceptance.
- Fluid and service characteristics help inform the appropriate SIL target but do not reduce requirements for higher-risk or difficult-service applications.
- The result is a clear, consistent, and transparent process for demonstrating equivalent safety across Alberta’s pressure-equipment industry.
Final Thoughts
AB-381i represents a constructive evolution in Alberta’s regulatory framework.
It does not change the intent of AB-525—it clarifies it.
By articulating explicit expectations for SIL targets, lifecycle documentation, and engagement with ABSA Design Survey, the guideline provides industry with a coherent, defensible, and modern framework for engineered overpressure protection.
Where uncertainty once existed—around SIL targets, PSV equivalence, and lifecycle obligations—there is now clarity, alignment, and shared understanding.
AB-381i bridges the space between regulatory assurance and engineering best practice, ensuring that “equivalent safety” means not only comparable design performance, but sustained reliability across the entire lifecycle of Alberta’s pressure systems.
Reach out to your Watchmen contact for details on how we can help you achieve compliance following AB-381i guidance.
References:
ABSA (Alberta Boilers Safety Association). AB-381i: Guideline for Demonstrating Equivalent Safety for Overpressure Protection by System Design (OPPSD). Edmonton, Alberta. August 2025.
– Establishes the current framework for demonstrating equivalent safety using SIL-rated systems in lieu of PSVs, with references to IEC 61508/61511 and PEIMS lifecycle requirements.
ABSA (Alberta Boilers Safety Association). AB-525: Overpressure Protection Requirements for Pressure Equipment. Edmonton, Alberta.
– Defines Alberta’s regulatory requirement for overpressure protection and permits OPPSD under PESR 38(1)(b).
ABSA (Alberta Boilers Safety Association). AB-512: Owner-User Pressure Equipment Integrity Management Requirements.
– Defines the requirement for a Pressure Equipment Integrity Management System (PEIMS) for registered owner-users.
Government of Alberta. Pressure Equipment Safety Regulation (PESR), AR 49/2006.
– Legal foundation for overpressure protection and OPPSD acceptance in Alberta.
IEC 61511 (2023). Functional safety – Safety instrumented systems for the process industry sector.
– Establishes lifecycle and SIL verification requirements for SIS/HIPPS designs referenced by AB-381i.
Originally issued: June 01, 2024
Author
Shaun Williamson, P.L.(Eng.), CFSE
Director of Engineering
Many Safety Instrumented Functions (SIFs) installed early in the adoption of IEC 61511 have either reached their mission time or are soon to expire. Companies now face decisions on how to handle this. The primary question is often, "Do we need to replace the SIF hardware, and what is the risk if we don't?" This article delves into why mission time is crucial for achieving high reliability and the consequences of ignoring expired SIF mission time.
Importance of SIF Mission Time
SIF Mission Time is vital when designing a Safety Instrumented Function. Failure to bring SIF elements to an 'as new' condition when their mission time expires can result in the SIF no longer meeting its designed integrity. This can lead to regulatory non-compliance when a specific Safety Integrity Level (SIL) is required for regulatory reasons. It can also mean operating outside the acceptable risk threshold if the SIF is meant to mitigate a specific risk. Thus, mission time is a key factor in achieving the target reliability.
The Relationship Between Mission Time and Useful Life
Mission Time refers to the period between when the SIF (or device) is put into service and when it is replaced or refurbished to "as-new" condition. When selecting a Mission Time for SIF elements as part of reliability modeling, it is essential to consider its relationship to Useful Life.
Useful Life and the Bathtub Curve

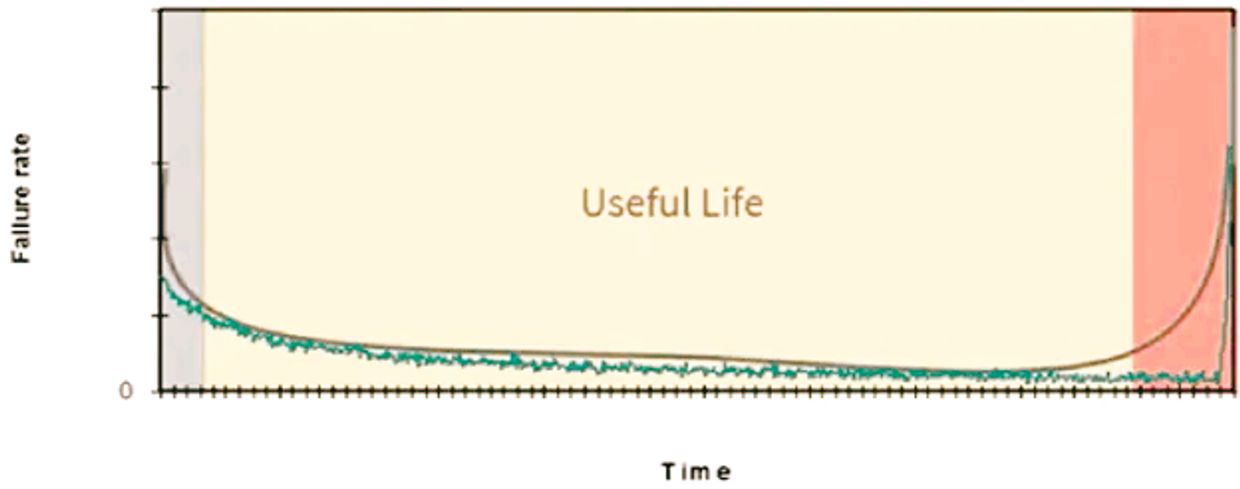

The following image of a bathtub curve is used to illustrate the importance of considering useful life. This graph and others like it below show the calculated failure rates over time for typical equipment.
The bathtub curve illustrates what the typical Useful Life curve looks like for most equipment. Hardware components typically have two periods of high failure rates: at the start of their life (infant mortality) and at the wear-out phase. Effective quality control, such as burn-in tests and commissioning checks, can address infant mortality. Wear-out failures can be managed by removing hardware from service before they occur. The relatively flat failure rate in the middle of the curve represents useful life, during which failure rate data used in reliability calculations are valid. SIF hardware must be maintained within this useful life for accurate SIF modeling. Exceeding useful life risks exponential increases in failure rates, entering the wear-out phase. Therefore, mission time must not exceed useful life for IEC 61511 compliance. It's also important to note that useful life can be application-specific, considering process and atmospheric conditions, as vendor literature might be based on ideal conditions, not harsh environments.
Mission Time Considerations
Mission Time is a calculated value to determine when SIF hardware should be restored to 'as new' condition. This value can be reduced to achieve a higher SIL due to a lower probability of failure. Useful Life is the maximum value that can be used for Mission Time.
Probability of Failure Over Time
Although the graphs of PFDavg over time are useful to visualize how the reliability degrades with time, you never know what the actual PFD or potential of failure of a specific SIF element. The first time you know that it’s not working correctly is a failed proof test (and proof testing never catches 100% of failure modes), or when it fails to prevent an incident. If your equipment is past its Mission Time, you have no idea what risk you’re operating at – but it’s certainly higher risk than you planned for!

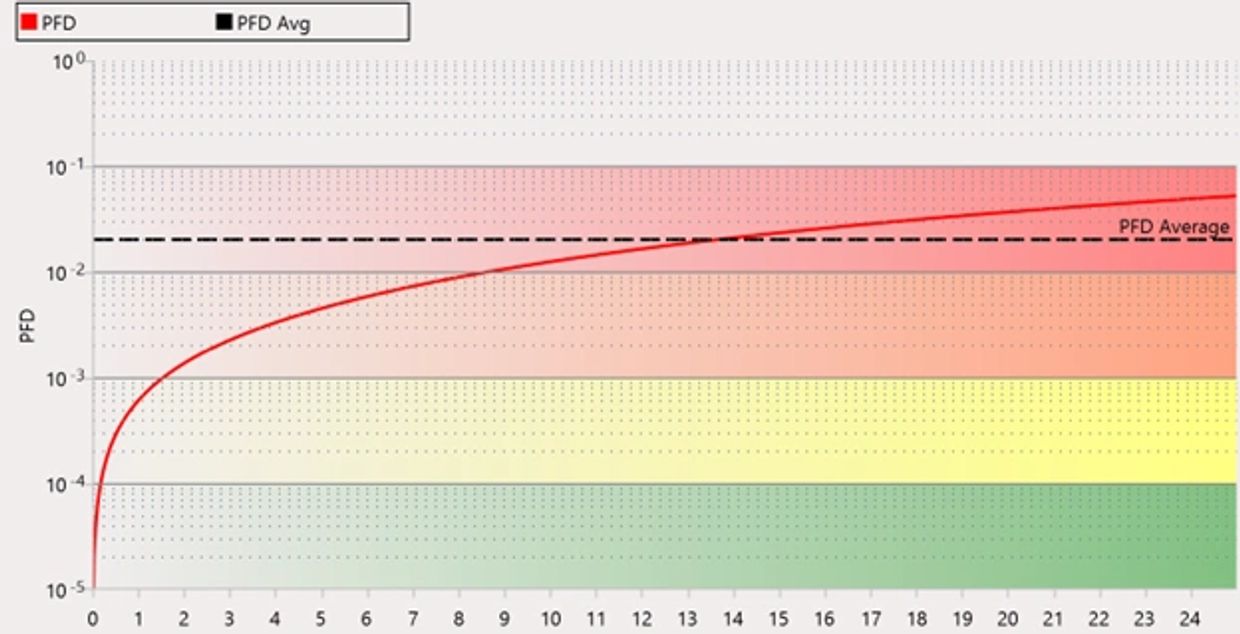

The image above represents equipment probability of failure over time without considering SIF Proof Testing which can reveal hidden failures before they occur, or an established Mission Time which allows the PFDavg to reset to zero. This graph shows that all equipment will eventually fail, and this probability increases over time. The red line represent the probability of failure on demand, while the dashed black line represents an average probability on demand (PFDavg). A lower PFDavg is represents a higher overall reliability.
Benefit of Regular Proof Testing

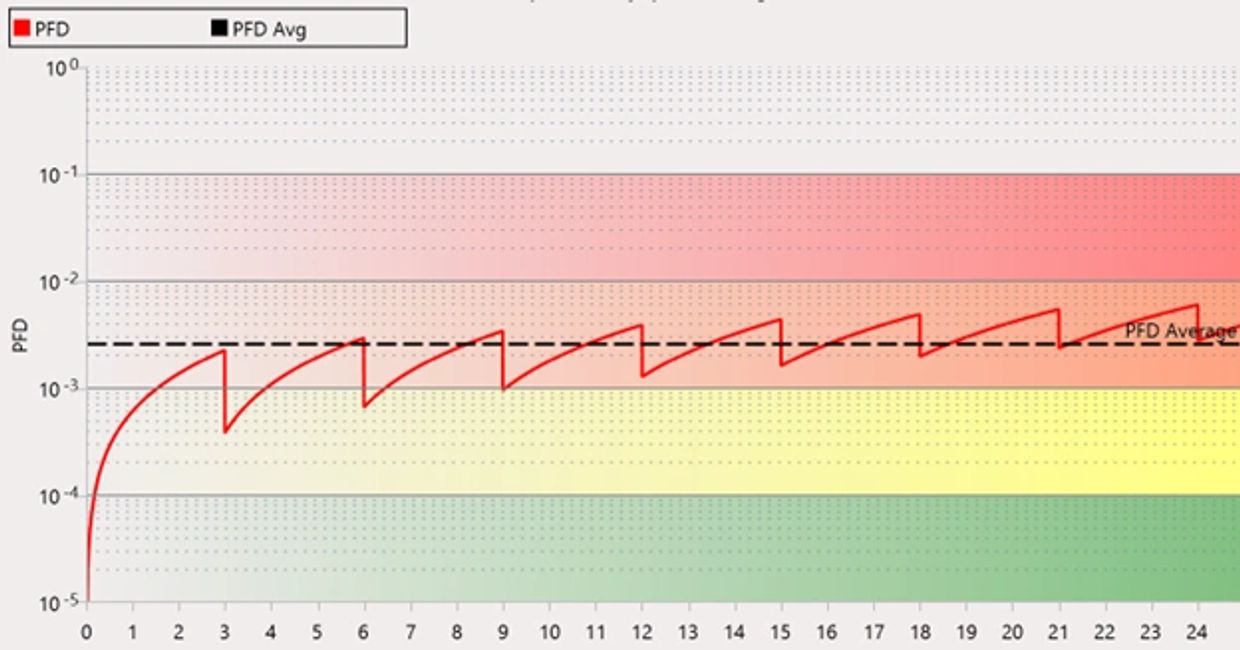

In contrast to the i above, the following image shows the benefit of regular proof testing with a significantly lower average Probability of Failure on Demand (PFDavg). The sawtooth pattern shows failure probability dropping at each test. How much it drops is a function of test coverage. Since no test is perfect, there will remain a certain portion of potential failures that remain undetected. Once the test is complete, the failure probability continues to climb until the next test. This pattern continues until the SIF is removed from service, replaced or repaired to 'as new condition' at the end of the mission time. Regular proof testing keeps the PFDavg low. More frequent testing or higher test coverage can further reduce PFDavg, enhancing the SIF reliability.
Reducing Mission Time for Better SIL Performance

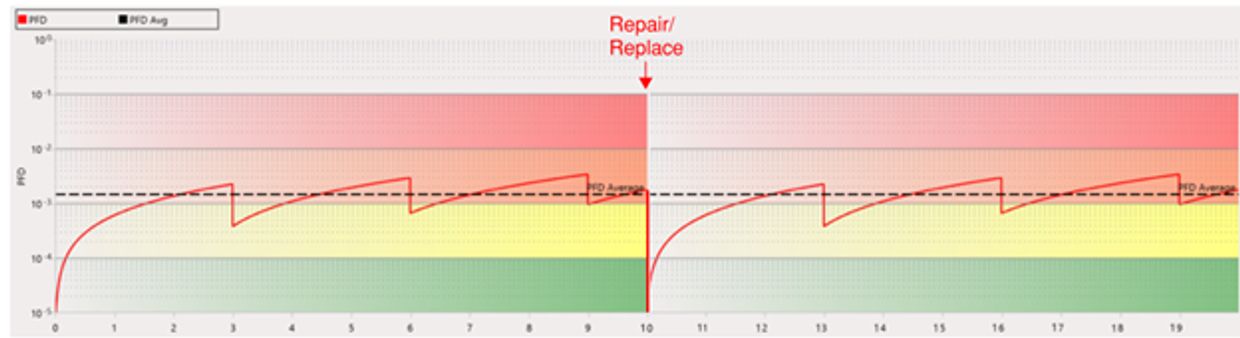

The image below highlights the benefits of reduced mission time to lower PFDavg for a higher achieved SIL. The intent is to bring SIF components to 'as new' condition. For non-repairable equipment, this means replacement; for repairable equipment, it requires rebuilding all wearable components. The remaining components must also be in 'as new' condition. If achieved, the PFD resets to zero, starting a new cycle. This approach can reduce proof test requirements or avoid the need for additional redundant hardware.
Consequences of Exceeding Mission Time and Useful Life
If SIF hardware is not restored to 'as new' condition when its mission time expires, its reliability degrades, and it fails to meet the SIL target. This non-compliance with IEC 61511 poses a regulatory risk, especially if the SIF was implemented for regulatory reasons. As time passes and the useful life is exceeded, the risk of failure increases exponentially. Safety Instrumented Functions are typically implemented to prevent severe consequences, such as toxic releases or explosions. Failure to maintain the SIL increases the risk of these events occurring without the intended protection.
Proactive Replacement of SIF Hardware
Replacing SIF hardware before the end of useful life avoids running the SIF in the wear-out phase. Safety Instrumented Functions are not intended to use a run-to-failure philosophy, unlike normal process control loops. Safety functions must work when all other protection layers have failed, making their availability crucial. Therefore, bringing SIF hardware to 'as new' condition at mission time expiry is necessary to ensure reliability.
Examples from Everyday Safety Equipment
Other critical safety equipment, like smoke detectors and fire extinguishers, are replaced before their expiry to ensure functionality. Smoke detectors, for instance, are replaced every 10 years to guarantee reliability. Fire extinguishers are also replaced upon expiry to ensure effectiveness. Similarly, Safety Instrumented Systems, designed to protect people and the public, must adhere to established mission times to provide the intended protection.
Managing Delayed Upgrades
While immediate rebuild or replacement is ideal, practical constraints such as budget and resource availability may delay this process. In such cases, prioritizing which SIFs to address first based on risk is essential. SIF modeling can be used to help evaluate the status of all existing SIFs, prioritizing upgrades based on the highest risk. This approach helps in staging upgrades and managing budgets effectively.
For SIF hardware that is not prioritized for immediate upgrade, several interim measures can be taken to maximize reliability and mitigate risk:
- Increasing Proof Test Frequency: Implement options for online testing between regular maintenance turnarounds to detect potential failures earlier.
- Updating Proof Test Procedures: Enhance proof test procedures to include more comprehensive testing, thereby increasing proof test coverage.
- Partial Stroke Testing and Diagnostics: Implement additional partial stroke testing or other diagnostic methods to monitor equipment performance.
- Alternative Protection Layers: Consider alternate non-SIL protection layers and other options to reduce the SIL load on existing SIFs.
These actions aim to maintain reliability as close to the needed SIL as possible until full upgrades can be accomplished. Utilizing SIL modeling can also help communicate the impact of delaying replacements, providing clarity to management on how delays affect reliability.
Summary
Adhering to mission time requirements is essential for maintaining the reliability and safety of Safety Instrumented Functions. Failing to address these requirements can lead to regulatory non-compliance and increased risks, undermining the safety measures intended to protect people and processes. A staged approach based on a risk assessment is a good way to prioritize the work, and alternate measures can be tested using SIF modeling to maximize reliability while in transition.
Originally issued: January 19, 2022
Author
Shaun Williamson, P.L.(Eng.), CFSE
Director of Engineering
Abstract
Part 2 of this article is intended to build off the BPCS independence requirements described in Part 1 by discussing some best practices and practical design options for compliance with the IEC 61511 BPCS independence requirements. In this article, we will discuss some of the options available including benefits and detractors of each. Historically, segregation of control from safety systems has been considered a costly endeavor that has been shunned by smaller operating companies or on smaller scale facilities. With updates to technology, the cost of segregation is becoming more reasonable and there are many ways of achieving these standards requirements.
Best Practices for Allowing Multiple BPCS Credits in LOPA
Attempting to apply dual credit for the BPCS category of protection layers in LOPA requires and understanding of the requirements. IEC 61511-2 Section 9.3.4 and 9.3.5 recommend that analysis be performed to ensure common cause and common mode failures are minimized. When practical, it is recommended that the independent BPCS platforms used be diverse to the greatest level practical including hardware, software, engineering tools and programming language. The level of diversity considered appropriate may depend on the level of risk associated with the application with greater levels of diversity being applied to high-risk applications.
System Independence
Establishing a strong corporate standard for SIS and BPCS implementation at the start of the project will prevent costly changes late in the project during the HAZOP and LOPA assessments which in some cases may occur after the controls system has been purchased. A common practice that can be taken is to implement control and safety interlocks using independent systems. Implementing safety interlocks in a SIL certified logic solver will provide a high degree of flexibility for handling high risk scenarios as the risk analysis progresses during the project. Safety certified systems have come down in price and are becoming more affordable and practical to work with. In some cases, the LOPA team may identify a benefit to implementing an additional independent BPCS system to avoid the need for a SIF or to reduce the SIL target. This decision may be one best left to the LOPA team rather than at the start of the project.
A design standard that requires two independent systems for control and shutdown is now quite common for larger scale and higher risk projects, however this has traditionally been less common on smaller, lower risk facilities. Many smaller applications such as wellsites, compressor stations and oil batteries have traditionally used either a common RTU or PLC for all control and shutdown functionality. The standards however apply the same for these types of facilities. Therefore, they would also benefit from the same standardized approach of separating control from shutdown using two independent systems. As SIS applications have now been around for many years, cost effective SIS systems are becoming more readily available. In some cases, a small SIS can be implemented for similar pricing as a general use PLC. SIL certified relays making use of a hard-wired approach may also be applied when there are only a couple of SIF applications identified. Local pneumatic and hydraulic protection loops can also be considered when necessary assuming reliability requirements can be met. For these local electric or mechanical loops, the sensing and final elements may be monitored by the BPCS, activating an alarm in the event of a local shutdown.
BPCS and SIS Architecture Options
There are a few different options available for implementing BPCS and SIS systems with the line between how independent they are becoming more blurred as technology advances. Control system vendors are developing innovative ways to establish independence using a common platform while attempting to minimize common cause and common mode failures. Greater care is required when implementing BPCS and SIS systems that are more closely integrated with the standards calling for quantitative analysis when common elements are used. The BPCS/SIS architecture types in use include:
- Air Gapped
- Interfaced
- Integrated
- Common
The Air-Gapped system has the greatest level of independence and was the most common method of implementation in the early days of SIS. This system is physically separate and therefore has very little possibility of common cause or common mode failures. This often requires different suppliers and therefore can be a more costly option.
The Interfaced System is also physically separated and allows for communication between the BPCS and SIS systems. In this system a communications failure in one system does not cause the other system to fail. This system is still considered to have a high level of independence between systems. This option also typically makes use of different suppliers.
The Integrated system is commonly provided by the same supplier and both systems make use of the same network while retaining separate logic solvers and I/O. There is often increased commonality of components including in some cases engineering workstations and tools and therefore an increased opportunity for common cause and common mode failures. This system is typically simpler and therefore cheaper to implement due to the commonality of the platform.
The Common System combines the BPCS and SIS into a common logic solver while retaining separate I/O and in some cases separate safety communications. To ensure sufficient independence, it may also be necessary to segregate the BPCS and SIS I/O into separate I/O networks and separate racks. This approach should only be considered if certified as compliant with the latest version of the IEC 61508 standards. This system has the lowest level of independence and the greatest opportunity for common cause, common mode and systematic failures.
No matter the system that is selected, all SIS applications must be certified to IEC 61508. Higher risk applications may wish to consider selecting a system with a higher level of independence. Additionally, the user is responsible to ensure to implemented system meet the requirements of IEC 61511.
What to do When Independence is Not Sufficient
While strict adherence to the most rigorous standards should be the ultimate goal, getting there can be a tough sell due to the potential price tag. Many industrial facilities were built at a time when these standards either did not exist or were considered a nice to have. The reality is that many facilities are still being built that still do not comply with the latest independence requirements for varying reasons. The following are some ideas on how to move towards compliance in a staged approach.
Rome wasn’t built in a day, but brick by brick it was completed. With future full compliance in mind, we can move toward that reality using a staged approach. Intermediary measure may include implementing diverse technologies and wiring practices, and independent I/O cards which in many cases can be completed for a reasonable cost. While this does not meet the intent of a fully compliant approach, it shows the issue of BPCS independence is taken seriously and shows some form of due diligence if a hazardous scenario arises.
In situations where strict adherence to the latest version of these standards is considered cost prohibitive, consider taking some short term proactive and affordable measures focused on a select few safety critical I/O. Consult your PHA and other documentation to determine which I/O is safety critical and prioritize upgrades based on the largest risk gaps. The highest risk functions can be re-wired into a fully independent logic solver, wired to remote I/O cards, make use of relays or loop splitters, among other solutions. Having your highest criticality safety functions managed under IEC 61511 can be an effective and affordable first step with lower criticality functions following suit at a later time. When considering migration plans to address obsolescence issues, this offers a great opportunity to move towards full compliance.
Benefits of Standards Compliance
There are many benefits that come with the investment of complying with the IEC 61511 standard (including the rigorous BPCS independence requirements) including:
a) Safer work environment for staff, environmental and asset protection, reduced risk of regulatory penalties or damaged reputation
b) Management of liability risk with standards compliance and risk mitigation
c) The analysis required to increase the reliability of SIS hardware reveals and corrects not only dangerous failures, but also safe failures leading to increased availability and plant up-time.
d) Flexibility when taking a system offline for maintenance (i.e. Fire & Gas System can still provide protection when the BPCS is down for maintenance).
e) Enhanced access controls and cyber security measures.
f) Simplify the analysis required on the BPCS and SIS that should occur if combined.
With some forethought and good engineering practices adopted at the start of the project, these requirements can be implemented at a reasonable cost and can come with many benefits. For brownfield applications, this has the potential to be a costly effort depending on the age of the existing system and standards they were implemented under. For this reason, it is highly recommended to engage a highly competent specialist prior to starting any updates.
References:
IEC 61511: Functional safety - Safety instrumented systems for the Process industry sector
IEC 61508: Functional safety of electrical/electronic/programmable electronic safety-related systems
